CeidMem: A compact Static Memory Library

(Implemented on UMC 65nm Low Leakage Technology)

                                                                                                                                                                                    LINK TO: Ceid Standard Cell Library

LIBRARY CELLS

Cell Name

Cell Behavior

MC6TTYP

Typical 6T memory model

MCAMPCCA

PCCA type sense amplifier

MCRWMUX

Read - Write multiplexer

MCWAMP

Write amplifier

MCWENAMP

Write amplifier with enable

MCBLPREEQ

Precharger with Equalizer

MCBLPREBEQ

Neg precharger with Equalizer

MCBLTG

Bit line transmition gate

MCBUFCX1

Column buffer

MCBUFENCX1

Tristate column buffer

MCBUFRX1

Row buffer

MCINVCX1

Column inverter

MCINVRX1

Row inverter

MCNOR2X1_RMC

2 to 1 Nor gate adjacent to the memory cells row. Used for address predecoding

MCNOR2X1_RRDC

2 to 1 Nor gate adjacent to the sense amplifier row. Used for sector read predecoding

MCNOR2X1_RWRC

2 to 1 Nor gate adjacent to the write amplifier row. Used for sector write predecoding

FILLR_MC6TTYP

Filler cell for memory cell row

FILLR_MCAMPCCA

Filler cell for sense amplifier row

FILLR_MCBLPREEQ

Filler cell precharger row

FILLR_MCWENAMP

Filler cell write amplifier row






Download the Ceid Libs Via Definitions

!! The memory library is provided for academic and non profit use.
!! By downloading the library, you AGREE to use it according to
the statement above.
(If you use our library -- refer to our work)

Static Memory Grid Structure

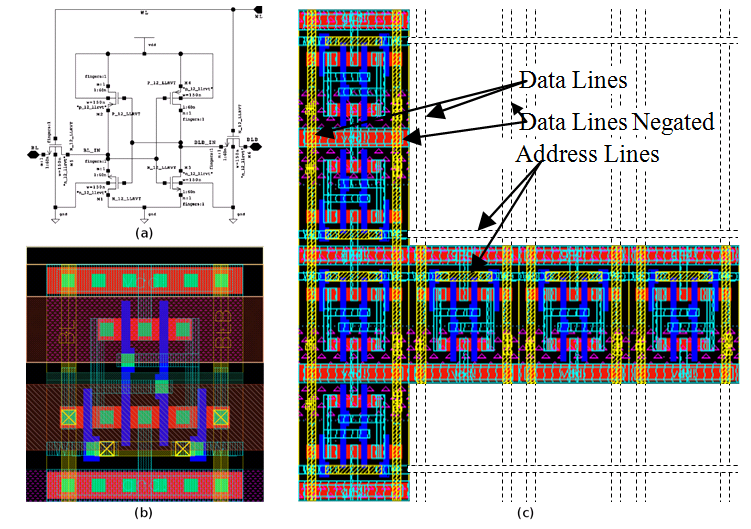

6T Static Memory Cell and Abutment

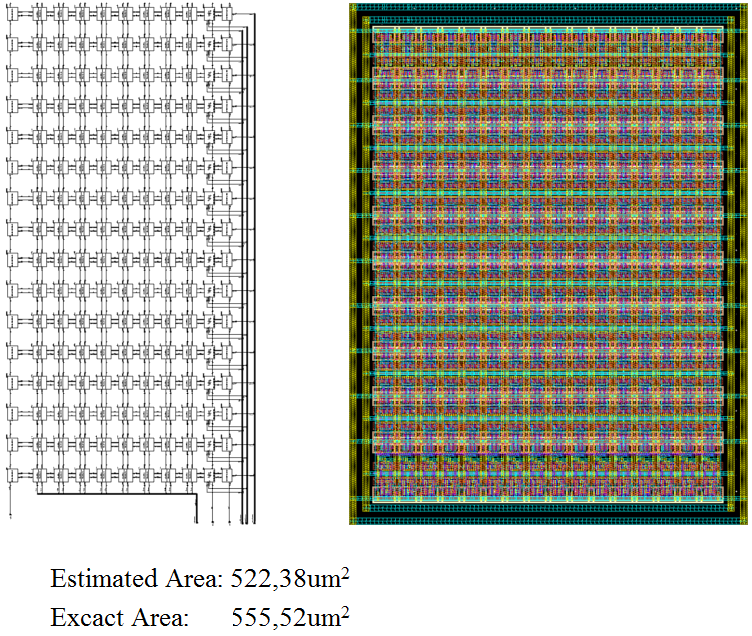

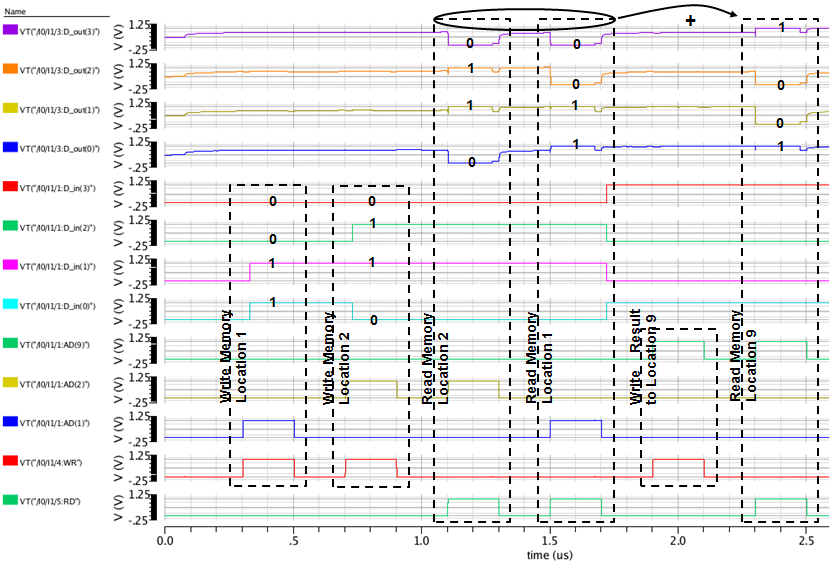

16x16 Static Memory Example


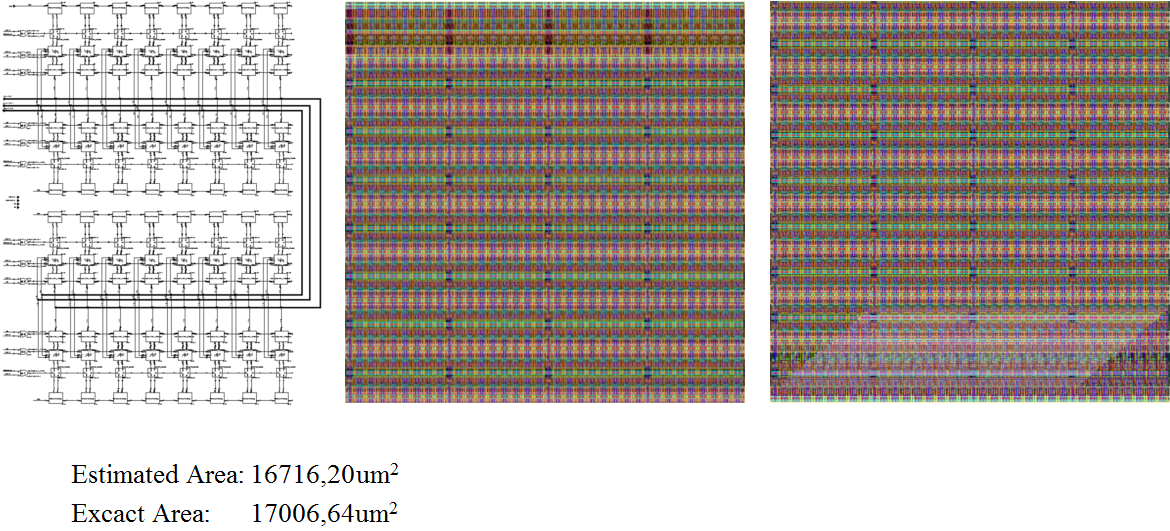

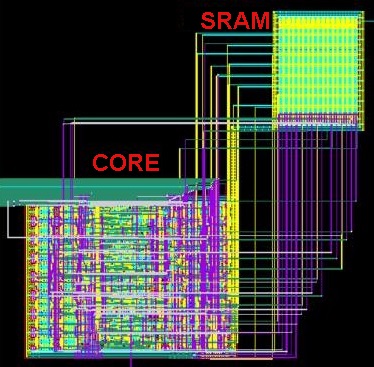

1Kx8 Interleaved  Static Memory Example
